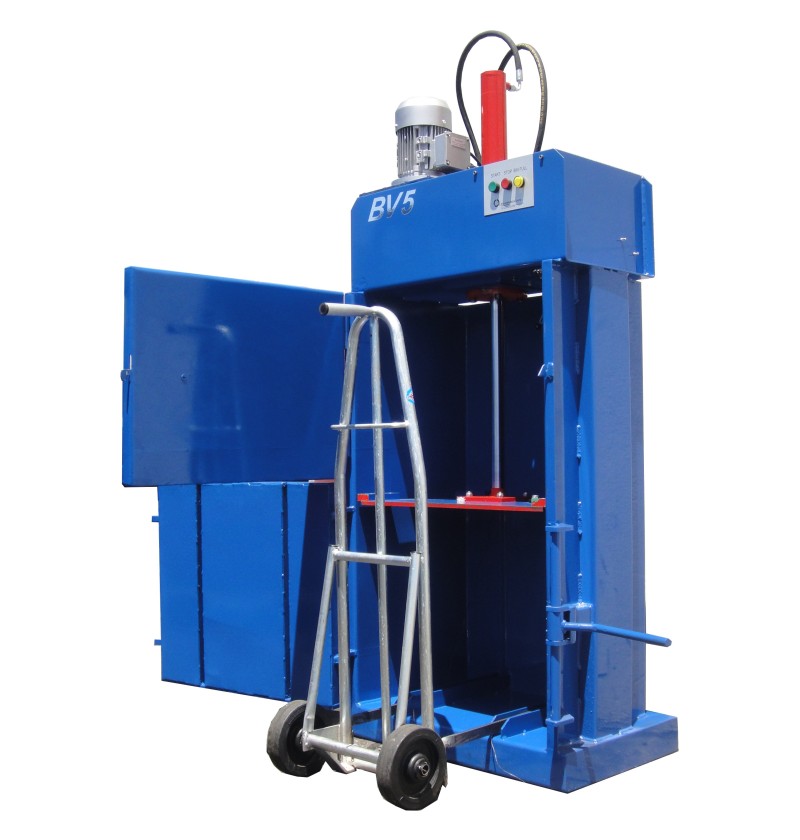

Vertical Baler
Supplier Details
Australian Recycling Equipment
Company Name
Australian Recycling Equipment
Postal Address
35 Caravel Court
State
QLD
Country
Australia
Postcode
4163
Equipment Details
Make, Model & Classification
Name
Vertical Baler
Model
BV - 5
Classification
Baling, Compacting/Compressing
Material Types
Cardboard, Flexible/Soft Plastic, Mixed Paper & Cardboard, Paper
Operations
Description
Purpose:
Compaction of waste to reduce the cost of transport
Technical Specifications
Machine Weight: 400kg
Bale Dimensions
Bale Size: 700 x 480 x670mm
Bale Weight: 35-45kg
Loading Arpeture: 700 x 450 x 480
Number of Ties: 2 off vertical – Nylon Straps
Machine Dimensions
Dimensions: 2050 x 880 x 630mm
Compaction of waste to reduce the cost of transport
Technical Specifications
Machine Weight: 400kg
Bale Dimensions
Bale Size: 700 x 480 x670mm
Bale Weight: 35-45kg
Loading Arpeture: 700 x 450 x 480
Number of Ties: 2 off vertical – Nylon Straps
Machine Dimensions
Dimensions: 2050 x 880 x 630mm
Operating Principles
Ram Force: 3.3tons
Control: Push Button or PLC
Service Indicator
Semi Automated Strap Feeder
Drive:1.1kw 380V (220V Optional)
Cycle Time: 12 sec
Pump Type: Gear Pump
Control: Push Button or PLC
Service Indicator
Semi Automated Strap Feeder
Drive:1.1kw 380V (220V Optional)
Cycle Time: 12 sec
Pump Type: Gear Pump
